Four Post Lift –SMO14N201Y – 182” wheel base | SMO14N202Y – 215” wheel base | Open Front Lift | Shockwave™ Available
Home / Four Post Lifts / SMO14N201Y – 182” wheel base / SMO14N202Y – 215” wheel base
SMO14N202Y – 215” wheel base
SMO14N201Y – 182” wheel base
Price $12,962.00 Model Number: SMO14N201Y – 182”
Price $13,623.00 Model Number: SMO14N202Y – 215”
Capacity: 14,000 lbs.
extended lengths available

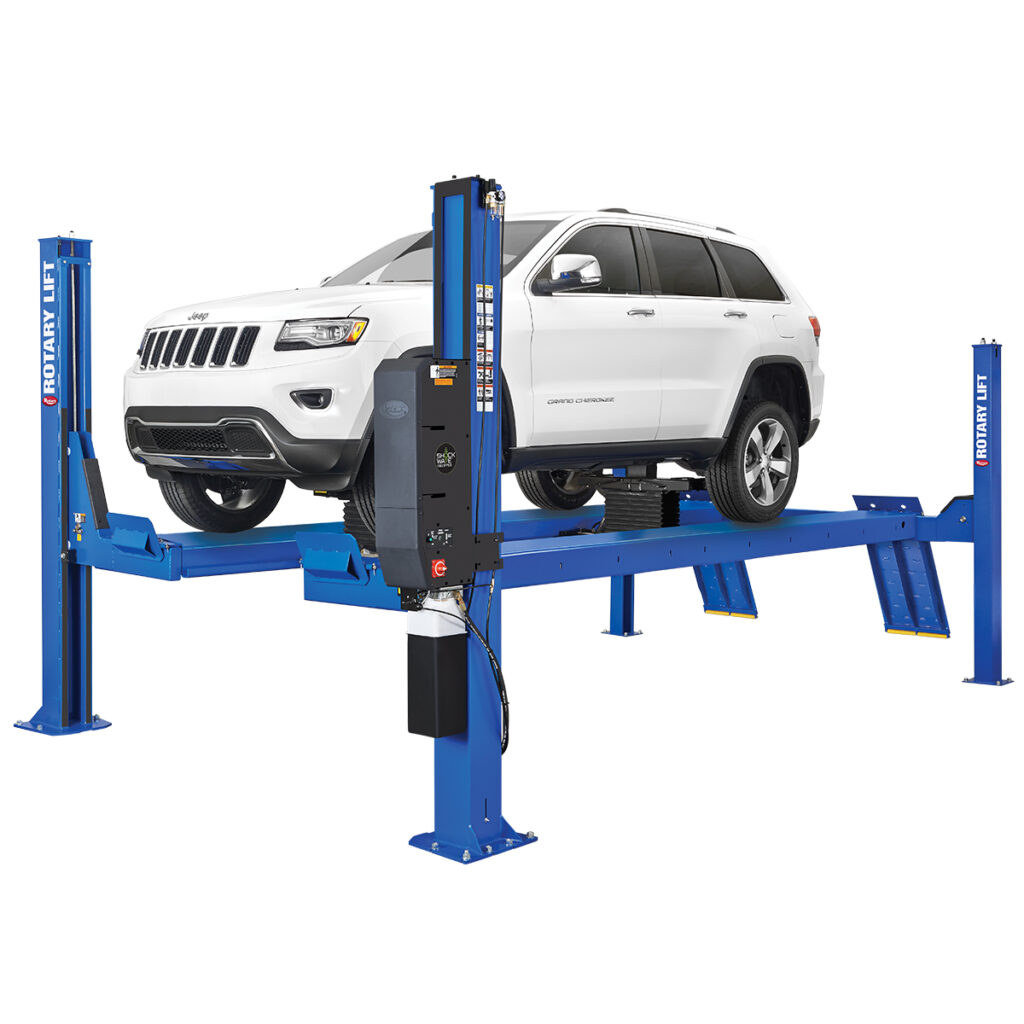

Versatility: it’s the standard to which Rotary Lift’s four-post lifts are built. These lifts handle cars, vans, trucks – even light and medium duty commercial vehicles with ease. If you service a wide variety of vehicles, the Rotary SMO14 four post auto lift is the right choice for maximum productivity.
- Open-end design
- Cylinder located under the runway
- Dual function Sentinel Lock™ System
- Air Filter/Regulator/Lubricator
- Adjustable latch bars
- Single piece non-welded runway with tracks for rolling jacks
- ALI Gold Certified (SMO14SW-X)
The SMO14 are offered with the option of being Shockwave™ Equipped or conventional configuration.
Features

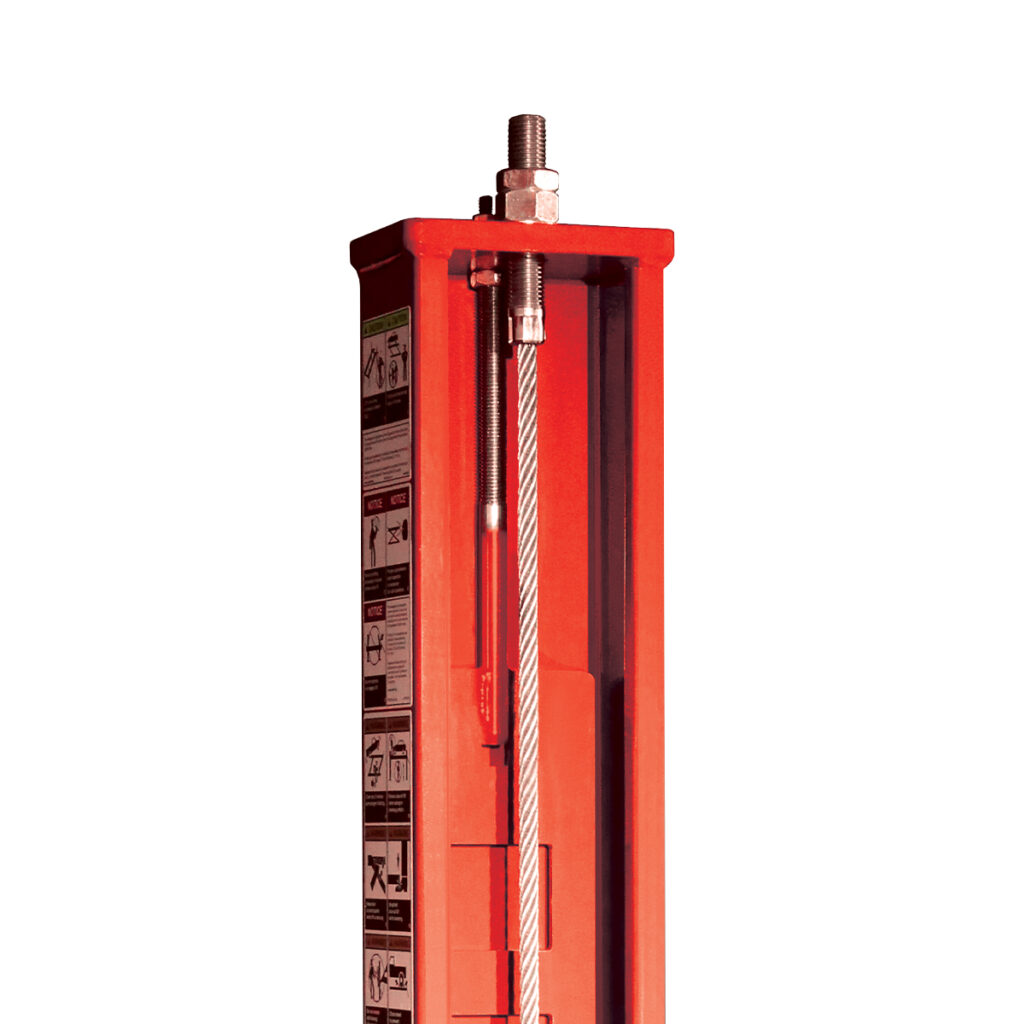

Patented dual function Sentinel Lock™ system features a slack cable
guide arm that stays “on guard” to manage the lock latch.

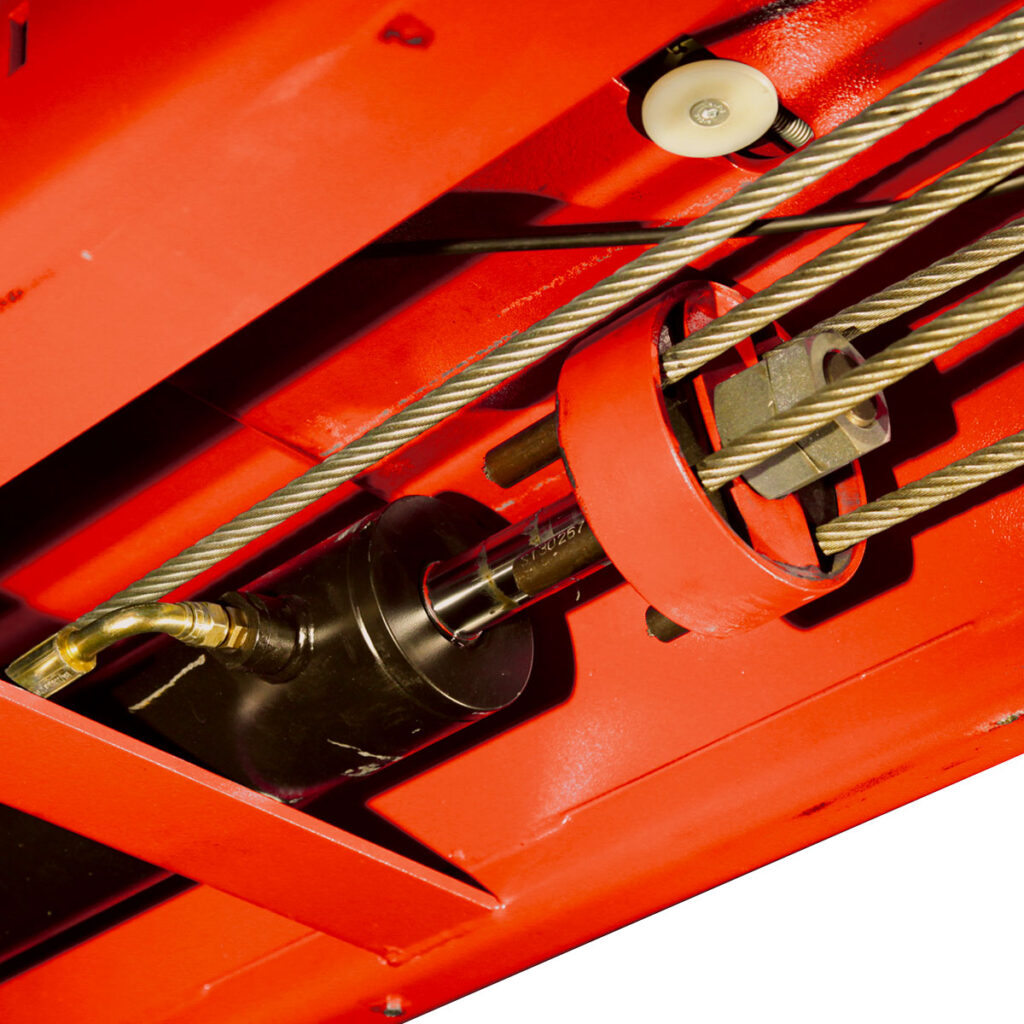

Concealed and protected under the runway, high performance cables and sheaves offer durability and dependable lift operation.
Powder coated hammer tone paint finish
improves durability and paint life.
Specifications
| Specification – SMO14 | SMO14-L | SMO14-EL | SMO14SW-L | SMO14SW-EL |
| Max. Wheelbase | 182″ | 215″ | 182″ | 215″ |
| Rise Height | 78 3/4″ | 78 3/4″ | 78 3/4″ | 78 3/4″ |
| Length Overall | 21′ 1″ | 23′ 10″ | 22′ | 23′ 8″ |
| Width Overall | 11′ 8 1/2″ | 11′ 8 1/2″ | 11′ 8 1/2″ | 11′ 8 1/2″ |
| Inside of Columns | 116 1/4″ | 116 1/4″ | 116 1/4″ | 116 1/4″ |
| Between Front and Rear Columns | 194 3/4″ | 227 3/4″ | 194 3/4″ | 227 3/4″ |
| Height of Columns | 9′ 1 1/16″ | 9′ 1 1/16″ | 9′ 1 1/16″ | 9′ 1 1/16″ |
| Width of Runways | 20″ | 20″ | 20″ | 20″ |
| Height of Runways | 7″ | 7″ | 7″ | 7″ |
| Width Between Runways | 43″ | 43″ | 43″ | 43″ |
| Lifting Capacity | 14,000 lbs. | 14,000 lbs. | 14,000 lbs. | 14,000 lbs. |
| Motor | 2 HP | 2 HP | 5 HP | 5 HP |
| Voltage Single Phase | 208v-230v | 208v-230v | 110V | 110V |
| Time of Full Rise | 65 seconds | 65 seconds | 35 seconds | 35 seconds |
| Time of Full Descent | 18 seconds | 18 seconds | ||
| Min. Bay Size | 15’x26′ | 15’x28′ | 15’x26′ | 15’x28′ |
Disclaimer
Note: Freight charges for this product are NOT included and will be calculated when order is placed. Local sales tax rates will apply on all Rotary Lift purchases that are drop-shipped from the manufacturer. Regional customers may will-call this product at our warehouse in Lodi, California.
