Four Post Lift – ARO22 | HD Open Front Lift | Drive-On Alignment Lift
Home / Truck Lifts / ARO22
ARO22N100 – 194” wheel base
ARO22N101 – 230” wheel base
$45,944.00 Model Number: ARO22N100 – 194” wheel base
$48,334.00 Model Number: ARO22N101 – 230” wheel base
Capacity: 22,000 lbs.
New High Capacity Open Front Four Post Lift
Give your shop more flexible options for repairs. Standard with exclusive, unmatched features and productivity-enhancing accessories, Rotary’s versatile ARO22 is compatible with all available Rotary wheel alignment systems. This lift is engineered for cars and commercial vehicles.
- Open-End Design
- 15,000 lbs. Capacity Rear Rolling Jack, 9,000 lbs. Capacity Front Rolling Jack
- Air Locking Rear Slip Plates
- LED lights integrated into lifting platforms
- Patented articulating roller system – balances roller load for extended life
- Dual Function Sentinel Lock™ System
- Single Piece Formed Runway With Non-Welded Tracks For Rolling Jacks
- Internal Airline with Air Filter/Regulator/Lubricator
- Stainless Steel Radius Gauges
- Compatible With All Rotary Alignment Systems
- ALI Gold Certified (ARO22xyyy)
Contact a Rotary Distributor
Features
THE NEW ARO22 HIGH-CAPACITY OPEN FRONT DESIGN / ENGINEERED FOR CARS & COMMERCIAL VEHICLES
SMARTFILL™ INTEGRATED AIR INFLATION SYSTEM
Optional SmartFILL™ system allows tires to be set to the desired psi while the technician performs other work. Dual tire filling enables separate pressure settings for front and rear axle tires.
AIR LOCKING REAR STEER PLATES
Air locking rear slips improve the quality and speed of the alignment process. Plates are flush with 26” wide runways. Operated from the power column.
LED RUNWAY LIGHTING SYSTEM
Integrated into the runways, the adjustable lighting system Illuminates the under vehicle workspace with the capability to adjust to the ambient lighting conditions. Dimmer controls enable Lumen adjustment ideal for every application.
Specifications

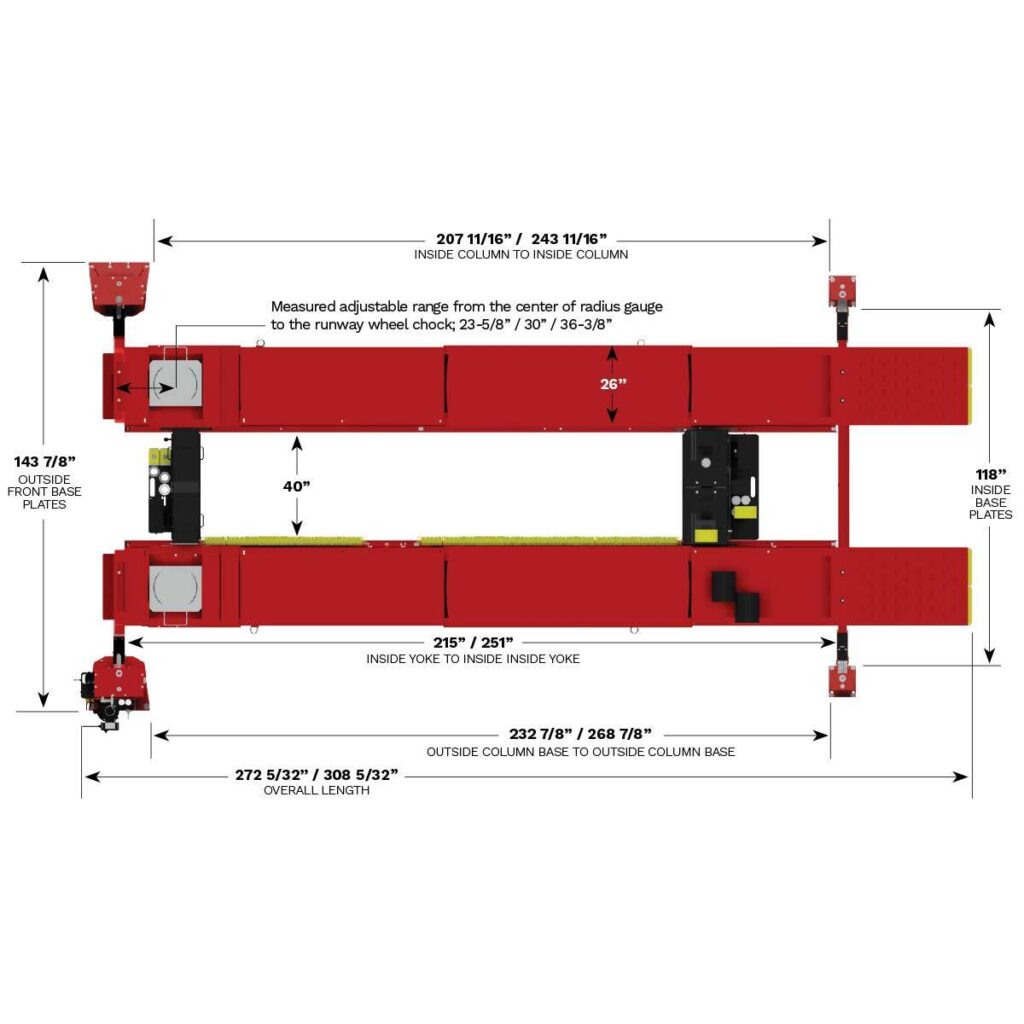

AVAILABLE IN TWO RUNWAY LENGTHS TO SERVICE A WIDE RANGE OF VEHICLE CHOICES
215” Standard runway length / S MODEL
• 82” to 165” 4-wheel alignment wheelbase range
• 179” 2-wheel alignment wheelbase
• 194” general service wheelbase
• 82” to 165” 4-wheel alignment wheelbase range
• 179” 2-wheel alignment wheelbase
• 194” general service wheelbase
251” Extended runway length / L MODEL
• 82” to 165” 4-wheel alignment wheelbase range
• 215” 2-wheel alignment wheelbase
• 230” general service wheelbase
• 82” to 165” 4-wheel alignment wheelbase range
• 215” 2-wheel alignment wheelbase
• 230” general service wheelbase

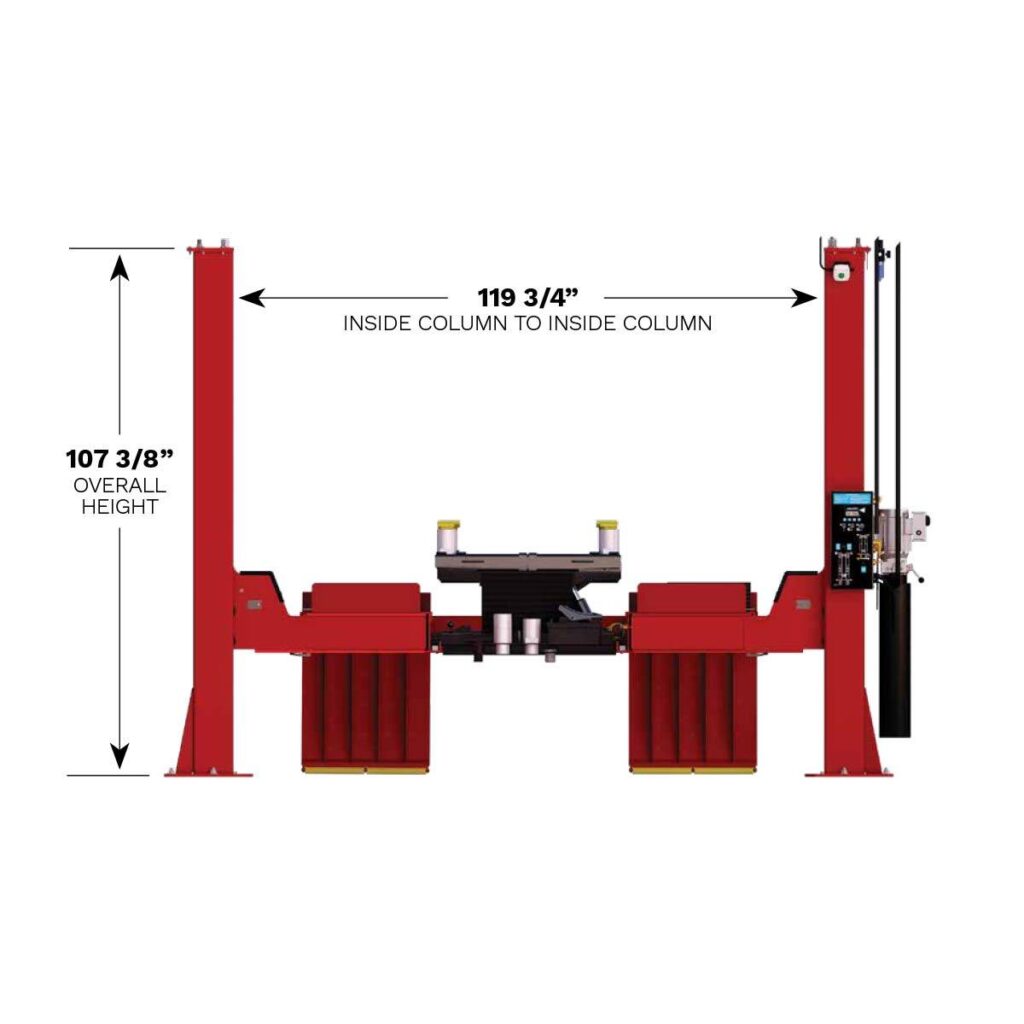

| Specifications | ARO22N000 (S Model) | ARO22N001 (L Model) |
| Max. Wheelbase | 194″ | 230″ |
| Max. Two Wheel Alignment | 177″ | 213″ |
| Min/Max 4 Wheel Alignment | 63″ – 162″ | 63″ – 198″ |
| Rise* / Floor to top of runway | 74” | 74” |
| Length Overall | 272 5/32” | 308 5/32” |
| Width Overall | 147 7/8” | 147 7/8” |
| Height Overall | 107 3/8” | 107 3/8” |
| Inside of Columns | 122″ | 122″ |
| Between Columns | 119 3/4” | 119 3/4” |
| Width of Runways | 26” | 26” |
| Height of Runways | 8 5/16” | 8 5/16” |
| Width Between Runways (min./max) | 40” | 40” |
| Lift Capacity | 22,000 lbs. | 22,000 lbs. |
| Motor | 4 HP / 208 – 230V | 4 HP / 208 – 230V |
| Voltage Single Phase* | 208v-230v | 208v-230v |
| Ramp Length | 41” | 41” |
| Time of Full Rise | 105 seconds | 105 seconds |
| Min. Bay Size | 13’ x 27’ | 13’ x 30’ |
| *Rise measures floor to top of runway at full stroke. Lift Colors are Blue and Red | ||
* Rise measures the highest position of the adjustable adapters with use of supplied adapter extensions from floor to full cylinder stroke.
**Actual rise and descent times vary depending on vehicle weight.
Heights and widths reflect standard settings. 2 post lift standard colors are red, blue and black.
**Actual rise and descent times vary depending on vehicle weight.
Heights and widths reflect standard settings. 2 post lift standard colors are red, blue and black.
Disclaimer
Note: Freight charges for this product are NOT included and will be calculated when order is placed. Local sales tax rates will apply on all Rotary Lift purchases that are drop-shipped from the manufacturer. Regional customers may will-call this product at our warehouse in Lodi, California.
