ARO14N201Y – 182” wheel base ARO14N202Y

Four Post Lift – ARO14N201Y – 182” wheel base | ARO14N202Y – 215” wheel base | Open Front Alignment Rack | Shockwave™ Available

Home / Four Post Lifts / SMO14N201Y – 182” wheel base / SMO14N202Y – 215” wheel base

ARO14N201Y – 182” wheel base
ARO14N202Y – 215” wheel base

BUY NOW ARO14N201Y – 182

BUY NOW ARO14N202Y – 215

Price $30,666.00 Model Number: ARO14N201Y – 182”

Price $31,205.00 Model Number: ARO14N202Y – 215”

Capacity: 14,000lbs.

extended lengths available

2X Faster rise and descent than standard 4 post lifts.

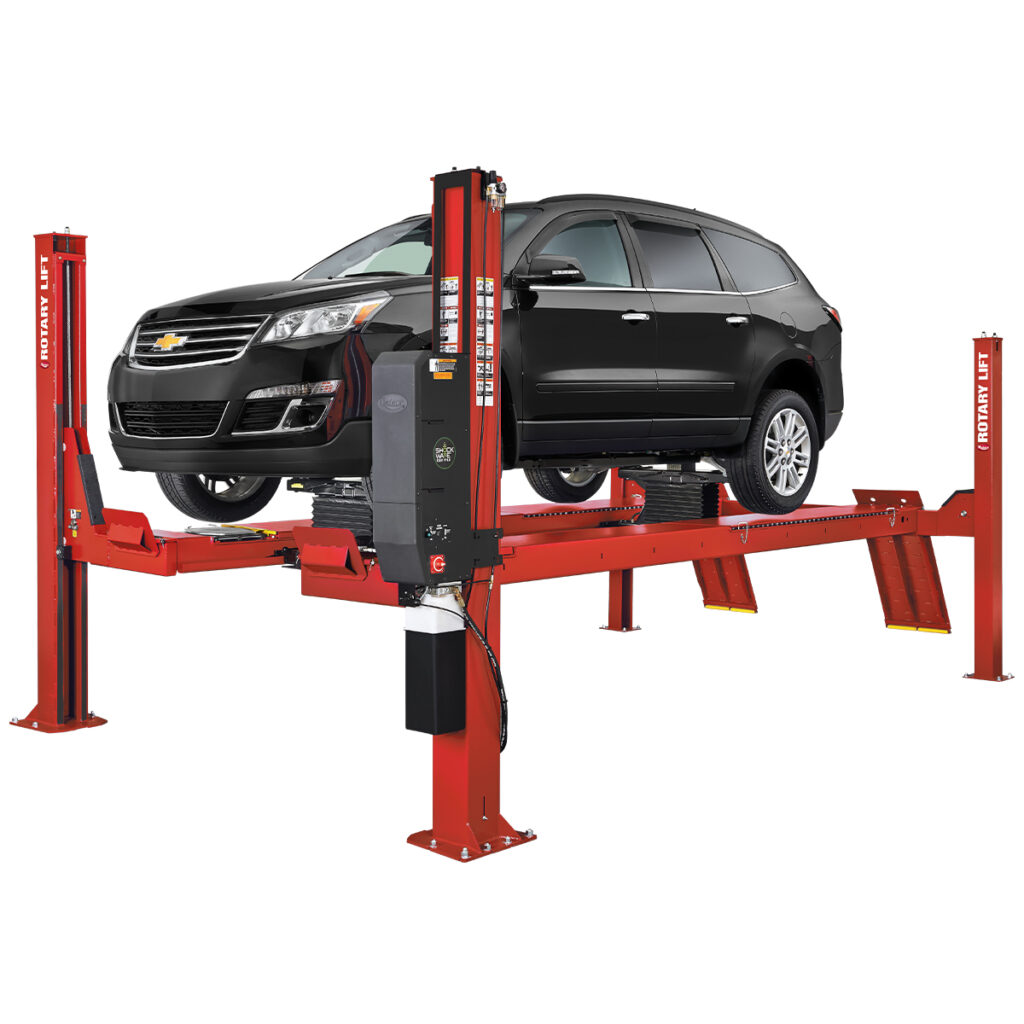

Rotary’s ARO14 is designed to handle alignments on cars, vans, trucks – even light and medium duty commercial vehicles with ease. If you service a wide variety of vehicles, the Rotary AR014 four post alignment lift is the right choice for maximum versatility.

Plus, when equipped with our exclusive Shockwave™ technology you increase your productivity with a lift that is 2x faster than standard four post lifts. The Shockwave’s DC power system also eliminates the need for expensive wiring, reducing installation costs by 80%.

Open-End Design
Dual Function Sentinel Lock™ System
Air Filter/Regulator/Lubricator
Single Piece Non-Welded Runway With Tracks For Rolling Jacks
Internal Airline
(2) 7,000 lbs. Capacity Rolling Jacks
Stainless Steel Radius Gauges
Rear Slip Plates
Compatible With The New Technology Alignment Systems On The Market Today
ALI Gold Certified (ARO14-X)

Available with Shockwave™ (ARO14SW) or without (ARO14).

Contact a Rotary Distributor

First name*

Last name*

Company name*

Email*

Phone number*

Country*

Primary Business

What are you interested in? *

Message

Features

The AR014 comes standard with unmatched features, equipment and an array of productivity-enhancing accessories. Two available wheelbases allow any shop to service a wide range of vehicles from cars to full size trucks.

The ARO14 can be configured with Rotary’s exclusive Shockwave™ technology. Rise and descend twice as fast as standard lifts.

The ARO14 can be configured with standard features. 7,000 lbs. capacity rolling jacks are included.

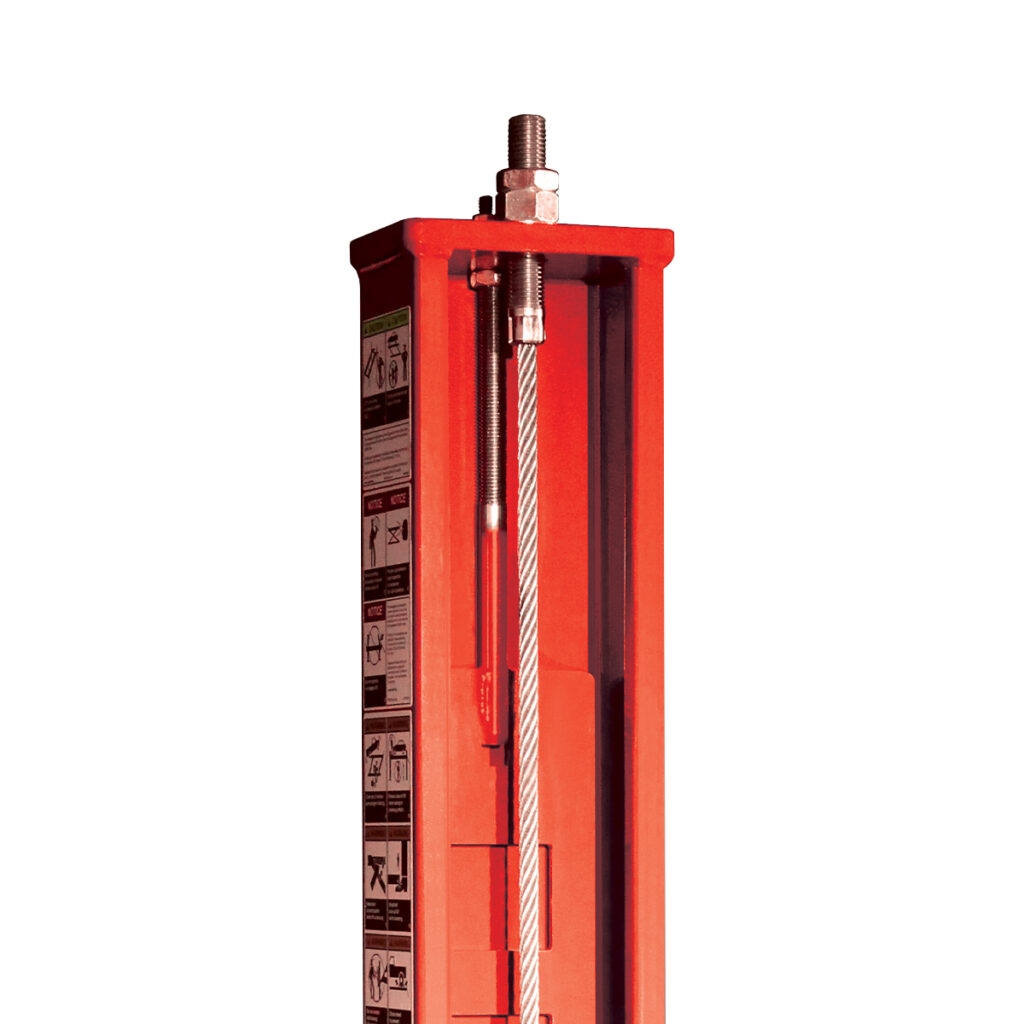

Patented dual function Sentinel Lock™ system features a slack cable guide arm that stays “on guard” to manage the lock latch.

Powder-coated hammer tone paint finish improves durability and paint life.

Specifications

Specification – ARO14	ARO14-L	ARO14-EL
Max. Wheelbase	182″	215″
Max. Two Wheel Align	171 1/4″	209″
Max Four Wheel Align	164 3/4″	164 3/4″
Min. Four Wheel Align	89″	89″
Rise	78 3/4″	78 3/4″
Length Overall	21′ 1″	23′ 10″
Width Overall	11′ 8 1/2″	11′ 8 1/2″
Inside of Columns	116 1/4″	116 1/4″
Between Front and Rear Columns	194 3/4″	227 3/4″
Height of Columns	9′ 1 1/16″	9′ 1 1/16″
Width of Runways	20″	20″
Height of Runways	7″	7″
Width Between Runways	43″	43″
Front of Runway to Center of Radius Gauge	Adj. 18″-24″	Adj. 18″-24″
Lifting Capacity	14,000 lbs.	14,000 lbs.
Motor	2 HP	2 HP
Voltage Single Phase	208v-230v	208v-230v
Time of Full Rise	65 seconds	65 seconds
Min. Bay Size	15’x26′	15’x28′

Disclaimer

Note: Freight charges for this product are NOT included and will be calculated when order is placed. Local sales tax rates will apply on all Rotary Lift purchases that are drop-shipped from the manufacturer. Regional customers may will-call this product at our warehouse in Lodi, California.
